SWF Krantechnik · 63 kg – 20 t
Electric and manual chain hoists for workstations, assembly lines, workshops and medium-heavy applications. Complemented by a belt hoist for quiet operation, the manual CRAFTster as a backup solution and ATHLO chain EX for explosive atmospheres (ATEX).
01 / Range
The right hoist for every type of operation — high-frequency production, quiet operation, manual applications. For capacities above 5 t and heavy-duty service, see our wire rope hoists; we also install hoists into light crane systems.
Electric chain hoist
New-generation electric chain hoist. Compact design, quiet operation, energy-efficient. Suited to workstations, assembly lines and applications demanding high precision.
Electric chain hoist for medium-heavy applications
Chain hoist for medium-heavy applications and quick installation on existing bridges. Suited to workshop cranes, paint shops, welding shops and facilities requiring simple maintenance.
Hoist with industrial textile belt
Hoist with an industrial textile belt instead of a steel chain. Very quiet operation, minimal vibration — suited to cleanrooms, food processing and applications with sensitive loads.
Manual chain hoist
Proven manual chain hoist for applications without access to electrical power, or as a backup device. Robust construction, simple operation, minimal maintenance. Suited to construction sites, assembly work and workshops.

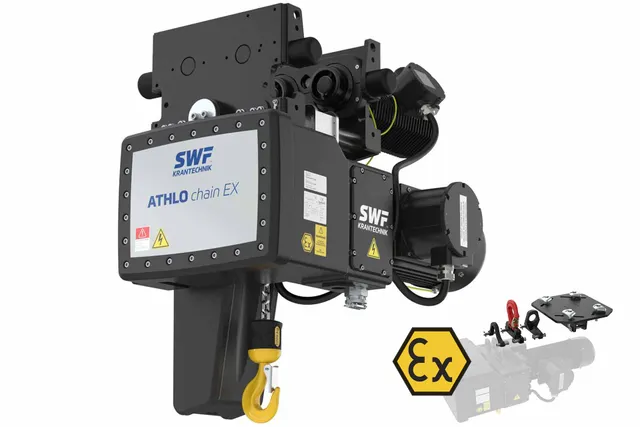

Chain hoist for explosive atmospheres
Electric chain hoist in Ex-proof design for ATEX zones 1, 2, 21 and 22. Standard in petrochemicals, pharmaceuticals, paint shops and facilities with explosion hazards. Same design as ATHLO chain, with certified protection.
02 / Technical comparison
Key differences between the models — capacity, drive, noise level and application.
| Parameter | ATHLO chain | CHAINster | ATHLO belt | CRAFTster | ATHLO chain EX |
|---|---|---|---|---|---|
| 01 Maximum capacity | 63 – 2,500 kg | 125 – 5,000 kg | 63 – 5,000 kg | 500 – 20,000 kg | 63 – 2,500 kg |
| 02 Drive | Electric | Electric | Electric (belt) | Manual | Electric (ATEX) |
| 03 Lifting height | up to 24 m | up to 30 m | up to 24 m | 3 – 12 m | up to 24 m |
| 04 Noise level | approx. 72 dB | approx. 75 dB | below 65 dB | no motor noise | approx. 72 dB |
| 05 Application | Workstations, assembly | Workshops, paint shops, welding shops | Cleanrooms, food processing | Construction, manual assembly | Petrochemicals, ATEX environments |
03 / FAQ
Answers to the questions we get most often. If yours is missing, give us a call — we are happy to help.
A chain hoist is more compact, lighter and cheaper — ideal for capacities up to 5 t and lower lifts. A wire rope hoist suits higher capacities (above 5 t), larger lifting heights and more demanding operations. We will advise you based on your application.
ATHLO chain is an electric chain hoist up to 2.5 t, ideal for workstations. CHAINster is more robust up to 5 t with a higher duty cycle, suitable for industrial lines. CRAFTster is a manual chain hoist up to 20 t.
Yes, ATHLO chain and CRAFTster are available in ATEX version for zones 1, 2, 21 and 22 per Directive 2014/34/EU. All components are certified for explosive atmospheres.
With regular maintenance and service it lasts 10–15 years even in two-shift operation. The chain is a wear part and is checked at every expert inspection.
Yes, we supply genuine chains, hooks, controllers and brakes for all ATHLO, CHAINster and CRAFTster models. Most parts are in stock in Michalovce.
No-obligation quote
Tell us the model and capacity you need. Our team will verify suitability for your application and prepare a quote.
