SWF Krantechnik · up to 2,000 kg
SWF ProfileMaster light crane systems for workstations, assembly lines and warehouses — freestanding aluminium and steel structures plus VECTO jib cantilever cranes up to 2 t capacity. We design, supply and install to suit your operation.
01 / Light crane systems
Four configurations for every type of operation — from aluminum workstations to freestanding structures and jib cranes. Detailed technical parameters can be found in the downloadable brochures on each card.

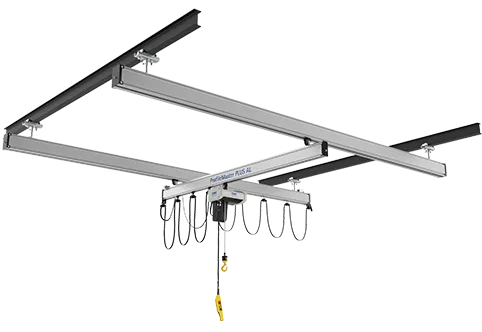

Aluminum light crane system
Aluminum profile crane systems for ergonomic handling of loads up to 2,000 kg. Low structural weight, quiet operation, modern design. Ideal for workstations, assembly lines, and spaces requiring a clean appearance.

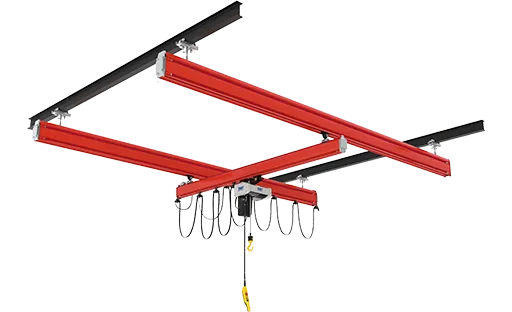

Steel light crane system
Steel profile crane systems with higher rigidity and load capacity. Suitable for more demanding operating conditions, higher temperatures, or mechanically stressed applications. Compatible with SWF electric wire rope hoists and manual chain hoists.

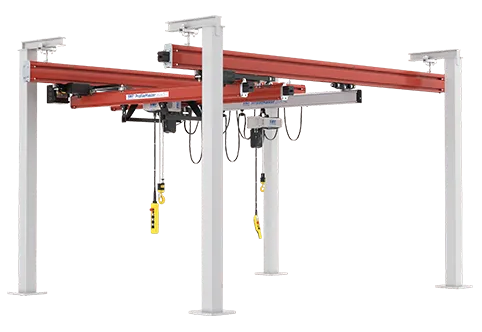

Freestanding support structures
Freestanding steel structures for ProfileMaster systems, with no need to anchor into ceilings or walls. They allow light cranes to be installed even where no suitable load-bearing roof structure is available.

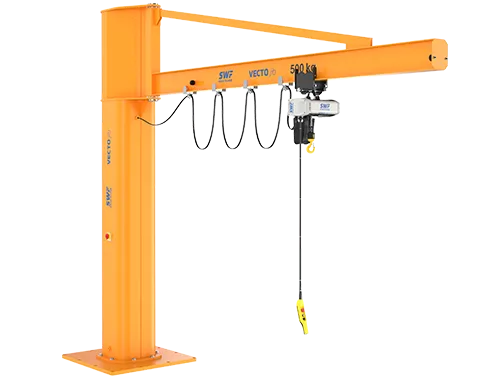

Cantilever jib crane
Jib crane with a cantilever boom for workstations requiring a full 360° circular reach. Compact design, simple operation, ideal for precise, repetitive lifting operations.
02 / Smart control
Condition Monitoring, TravelMaster, and RadioMaster — digital control, monitoring, and communication, the foundation of a modern industrial crane. 14 features with demo videos.
Sway damping
Micro speed
Tandem control
Load floating
03 / FAQ
Answers to the questions we get most often. If yours is missing, give us a call — we are happy to help.
A light crane system is a load-bearing structure made of aluminium (ProfileMaster AL) or steel (ProfileMaster ST) profiles that allows manual or electric movement of loads along the hall. It is used to serve workstations, assembly lines and warehouses up to 2 t capacity.
ProfileMaster AL is aluminium — lighter, corrosion-resistant, suitable for clean rooms and pharmaceutical production. ProfileMaster ST is steel — stronger, suitable for heavier industrial operations and higher capacities.
The VECTO jib is a rotating cantilever crane mounted on a wall, column or the floor. It serves a single workstation — for example at a machine, welding line or loading ramp. Capacity up to 2 t, rotation 180° or 360°.
Free-standing structures on the floor generally do not require a building permit. Systems anchored to the ceiling or hall structure are assessed statically and we provide the documentation for your structural engineer.
Yes, we install into existing halls without touching the load-bearing structure. Free-standing systems stand on the floor, anchored systems are fixed to the ceiling or beams. Installation usually takes 1–3 days.
No-obligation technical proposal
Describe your application, load capacity, span, and control requirements. Our team will prepare a solution proposal with a price quotation.
